SL-MIPI-DSI-eDP-CNV
DSI2eDP – flexible MIPI-DSI to embedded Display Port (eDP) interface converter
- MIPI-DSI to eDP display converter
- Based on SN65DSI86
- Compatible with D-PHY1.1 (DSI1.02)
- Compatible with MIPI-DSI data packets: 18bpp, RGB666 and 24bpp RGB888
- Input bandwidth up to 6Gb/s (4 lanes)
- Fully compatible with SoMLabs carrier board equipped with MIPI-DSI output
- Plug & Play solution for SoMLabs customers
- Connection with carrier board using FPC30 cable A-A type

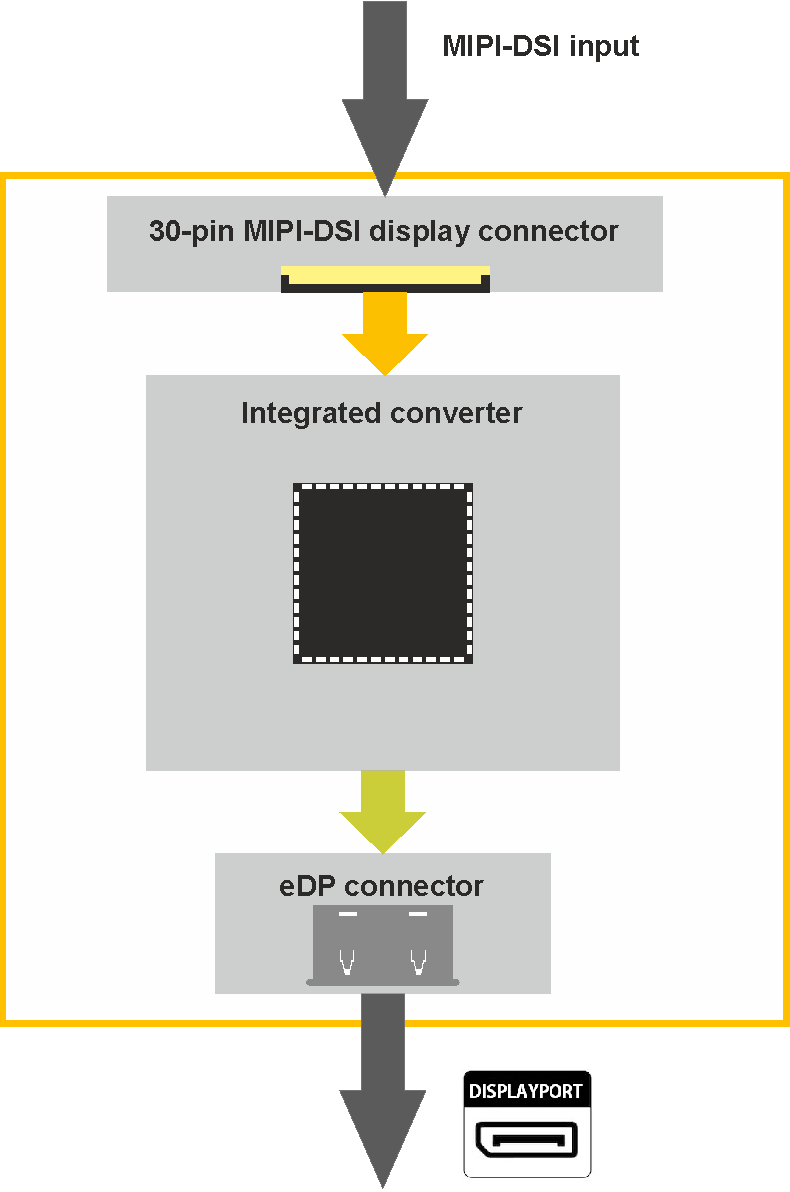

SL-MIPI-DSI-eDP-CNV is flexible DSI2eDP display converter. It converts MIPI-DSI to eDP protocol. The solution we dedicate to SoMLabs carrier boards equipped with MIPI-DSI interface (with FPC30 connector) but can be used in any MCU/MPU system. Converter is fully compliant with DSI1.1 and eDP 1.4 and converts video stream up to 60 fps 4K 4096 × 2304 resolution at 18 bpp color, and WUXGA 1920 × 1200 resolution with 3D graphics at 60 fps (120 fps equivalent).
The SL-MIPI-DSI-eDP-CNV based on SN65DSI86 bridge and is suported by Linux dedicated to SoMLabs SoM modules.
| Features | SL-MIPI-DSI-eDP-CNV v1.1 |
|---|---|
| Input interface | MIPI-DSI (DSI1.02) |
| Input MIPI data lanes | 1...4 (up to 1.5Gb/s each) |
| Output interfaces | eDP (embedded Display Port) |
| Output formats | 4096 × 2304 px at 18 bpp, 2560 x 1600 px at 60 fps, 1920 × 1080 at 120 fps with up to 24 bpp |
| Video standard | eDP 1.4 |
| Input connector | FPC30 (SoMLabs MIPI-DSI standard, compatible with SoMLabs carrier boards) |
| MIPI cable type | FPC30 polarization A-A |
| Temperature range | -40÷+85°C |
