StarSOM-STM32H757 (SLS05)
Industrial SoM computer based on STM32H757 dual core (ARM Cortex-M7 + ARM Cortex-M4) MCU with Ethernet PHY on-board
- powered by high-performance STM32H757
- dual ARM cores: Cortex-M7 + Cortex-M4
- cores clock up to 480MHz (M7)/240MHz (M4)
- 2MB on-chip Flash memory
- 1MB on-chip RAM memory
- up to 256Mb (32MB) SDRAM memory
- up to 256Mb (32MB) QuadSPI Flash memory
- on-board Ethernet PHY interface 10/100 Mb/s
- optional integrated WiFi/BLE module (Murata 1DX)
- power-efficient and cost-optimized solution
- efficient Chrom-ART GPU with MIPI-DSI interface
- ideal for industrial IoT and embedded applications
- FreeRTOS support
The StarSOM-STM32H757 (SLS05) family comprises miniature computing modules based on the dual-core STM32H757 microcontroller. The device integrates a high-performance Arm Cortex-M7 core operating at up to 480 MHz and an Arm Cortex-M4 core operating at up to 240 MHz, enabling the simultaneous execution of demanding real-time and application-level workloads.
The StarSOM-STM32H757 (SLS05) modules can be equipped with an optional Wi-Fi and Bluetooth module and provide an integrated Ethernet PHY interface.
The StarSOM-STM32H757 (SLS05) is a highly integrated, low-power System-on-Module combining high computing performance, deterministic real-time operation and the flexibility of a microcontroller-based platform. Its hardware security features include support for AES-128, AES-192 and AES-256, Triple DES, HMAC, MD5, SHA-1 and SHA-2 cryptographic algorithms.
The integrated Chrom-ART graphics accelerator and hardware JPEG codec make the module particularly well suited to advanced graphical user interfaces, home and industrial control systems, wireless and communication applications, and real-time embedded systems.
The StarSOM-STM32H757 (SLS05) features a square PCB form factor and two low-profile, 100-pin board-to-board connectors, providing a total of 200 connection points.

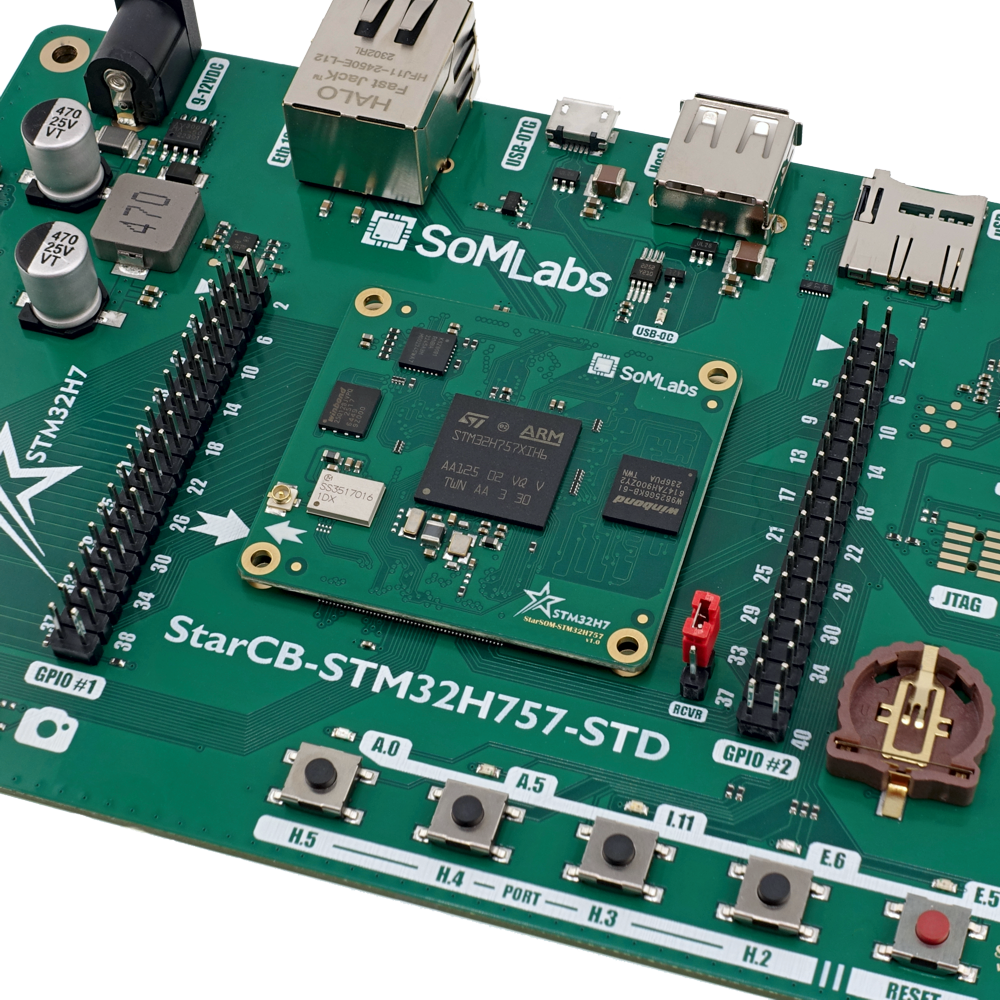

For evaluation and prototyping, we recommend using the dedicated StarCB-STM32H757-STD carrier board.
| Features | StarSOM-STM32H757 |
|---|---|
| CPU | |
| CPU Name | dual core STM32H757 |
| CPU Type | Cortex-M7 + Cortex-M4 |
| CPU Cores | 2 |
| CPU Clock (Max) | 480MHz/240MHz |
| Memory | |
| SDRAM | up to 256Mb (32MB) |
| Flash | up to 256Mb (32MB) QuadSPI |
| Display | |
| Serial interface | MIPI-DSI (dual lane, up to 1024 x 768 pixels, XGA) |
| GPU | |
| Graphics Acceleration | Chrom-ART |
| Codec | JPEG |
| Network | |
| Ethernet | 1 x 10/100Mbit/s (Ethernet PHY on-board) |
| WiFi | Murata 1DX module on-board (incl. BLE) |
| Bluetooth | |
| BLE | Murata 1DX module on-board |
| Connectivity | |
| I2C | up to 4 channels |
| SPI | up to 6 channels |
| CAN | up to 2 CAN-FD |
| UART | up to 5 channels |
| USB | 2x USB 2.0 OTG |
| Audio | |
| Audio interfaces | 4x SAI + SPDIF |
| DFSDM | 8 channels/4 filters |
| Analog | |
| ADC | 3x 16 b @3.6MSPS (up to 36 channels) |
| DAC | 2x 12 b @1MHz |
| Comparators | 2x ultra low power |
| OPAMP | 2x with analog bandwidth up to 7.3MHz |
| Security | |
| Advanced Security | True random number generation |
| Cryptohgraphy | AES128/192/256, SHA-1/-2, DES/3DES, HMAC |
| OS Support | |
| FreeRTOS | |
| Temperature Range | |
| Industrial | –40 to +85°C |
| Power Supply | |
| Input Voltage | 3.3V DC |
| Mechanical Dimension | |
| SOM Size | 40mm x 44mm x 5mm |
| Mechanical Connectors | |
| SoM Footprint | square shaped |
| Carrier-board connector type | DF40HC (3.0) -100DS-0.4V(51) DF40C-100DS-0.4V(51) |
| Antenna connector for Wi-Fi/BLE | U.FL on SOM |
| Other | |
| Altium Designer’s library file is available for all SoM variants (SCH and PCB) | |
