SL-IoT-BOX-6ULL
Industrial, fanless, compact computer for edge applications based on i.MX6ULL processor
- Programmable industrial controller based on Linux
- Powered by NXP i.MX6ULL industrial processor @792 MHz
- Efficient fanless design
- Up to 32GB eMMC/512 MB DDR3L
- 4 digital inputs (IEC 61131-2 TYPE 1)
- 4 digital outputs (high-side electronic switches)
- 2 relay outputs (NC-C-NO)
- Communication interfaces: 2 x RS232, 1 x RS485, 1 x CAN-FD
- 4 x USB 2.0 channels
- 4 user LEDs
- Ethernet interface 10/100 Mb/s (IEEE 802.3u)
- RTC with battery
- Built-in power supply 10-24 VDC
- Optional WiFi/BLE interface with external antenna
- MicroSD socket
- Integrated USB-OTG for eMMC programming
- Integrated Linux console port
- Aluminum housing IP40 rated
- OpenPLC compatible
The SL-IoT-BOX-6ULL is a compact, energy-efficient, fanless industrial computer designed for edge computing and PLC applications.
Powered by the NXP i.MX 6ULL processor, it offers a wide range of connectivity options, including RS-232, RS-485, CAN FD, USB and Ethernet, as well as optional Wi-Fi and Bluetooth Low Energy connectivity with an external antenna. The system provides digital inputs and outputs, relay outputs, and flexible storage options based on eMMC or a microSD card. It also includes development- and maintenance-friendly features such as status LEDs, a console port and a battery-backed real-time clock.
Designed for reliability and flexibility, the SL-IoT-BOX-6ULL provides a versatile platform for modern IoT, edge-computing and industrial-control applications. Support for OpenPLC enables the development of scalable, flexible and future-ready automation solutions.
The system is built around the powerful VisionSOM-6ULL System-on-Module, which provides the main processing and communication capabilities.

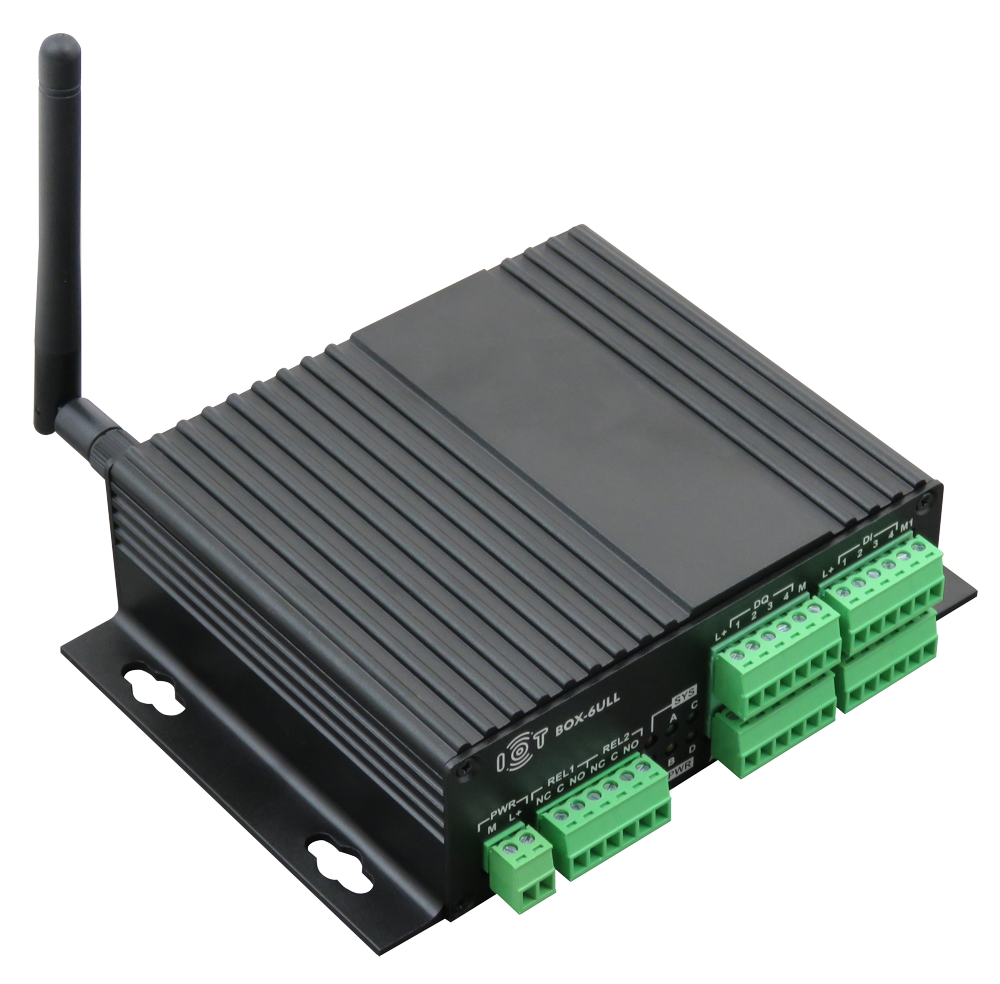

The SL-IoT-BOX-6ULL is housed in a durable aluminium enclosure with an IP40 ingress-protection rating.
| Features | SL-IoT-BOX-6ULL |
|---|---|
| CPU | |
| CPU Name | NXP i.MX 6 ULL |
| CPU Type | single core ARM Cortex-A7 |
| CPU Clock (Max) | 792 MHz |
| Memory | |
| RAM | 512 MB DDR3L |
| eMMC | 4...64GB |
| Networking | |
| Ethernet | 1x 10/100 Mbit/s |
| Connectivity | |
| RS485 | 1x (half-duplex, fail-safe) |
| CAN | 1x (CAN-FD) |
| RS232 | 2x (RX/TX) |
| USB 2.0 | 4x host |
| USB-OTG | 1x (user/service) |
| I/Os | |
| DI | 4x IEC 61131-2 type 1 |
| DO | 4x high-side (electronic switch) |
| RELAYS | 2x built-in (NC-C-NO) |
| Another functions | |
| RTC | built-in (with battery socket) |
| LED | 6x (heartbeat, power supply, user) |
| MicroSD | 1x |
| Security | |
| Advanced Security | AES-128, ARM TrustZone, RNG |
| Software Support | |
| LINUX | Yocto, Debian |
| PLC | OpenPLC |
| Ambient Temperature Range | |
| Industrial | –40 to +85°C |
| Extended | –25 to +70°C (with radio module) |
| Power Supply | |
| Input Voltage | 5.0V (USB) or 10-24 VDC (external power supply) |
| Mechanical Dimension | |
| Size | 41 x 147 x 102 mm (excluding antenna connector) |
| Additional Connectors | |
| USB | MicroUSB A/B (OTG) for user and/or software upgrade |
| USB | Linux console (CDC) |
