SL-VISIONSOM-6ULL-4CH-PRG
4-channel production programmer for VisionSOM-6ULL modules
- 4-channel production programmer
- Programs simultaneously up to four VisionSOM-6ULL modules
- PC connection interfaces: USB 2.0
- Simply user interface
- Two independent USB interfaces: for programming and console
- Fully compatible with NXP’s uuu manufacturing tool
- Safe, voltage-free module installation in SODIMM socket
- External 12 VDC power supply

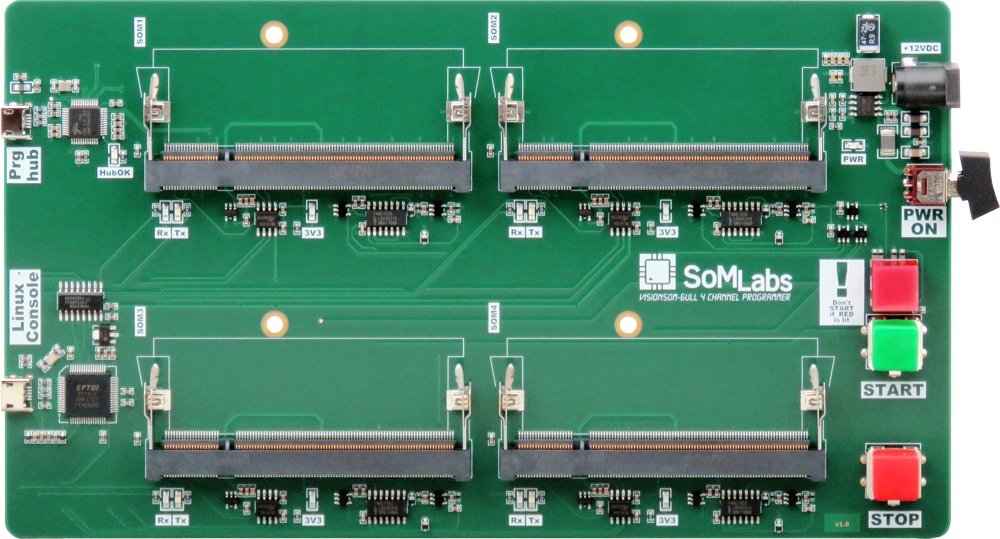

SL-VISIONSOM-6ULL-4CH-PRG is a 4-channel production programmer for VisionSOM-6ULL modules that enables simultaneous programming and activity monitoring of up to four modules. The programmer connects to a PC via two USB interfaces and works with the uuu software for NXP processors.
The SL-VISIONSOM-6ULL-4CH-PRG speeds up and simplifies programming a large number of VisionSOM-6ULL modules. Thanks to its simple user interface, the programmer can be operated by even the most unskilled personnel.
Depending on production requirements, the SL-VISIONSOM-6ULL-4CH-PRG programmer also enables communication with the modules being programmed via the console port. The electrical safety of the programmed modules is ensured by integrated current controllers with dedicated logic that disconnect the power supply after programming is completed.
| Features | SL-VISIONSOM-6ULL-4CH-PRG |
|---|---|
| Compatible with modules | VisionSOM-6ULL |
| Number of programming channels | up to 4 |
| Control software | NXP uuu manufacturing tool |
| Special function | Safe, voltage-free VisionSOM-6ULL module installation |
| PC Connection interface for programming | USB2.0 |
| PC Connection interface for console | USB2.0 |
| Operator interface | two pushbuttons + single LED |
| Signalling interfaces | console Tx/Rx monitors + 3.3V power-good |
| Dimensions | 208 mm x 120 mm x 15 mm |
| Power supply | 12 VDC/1.5A |
| Temperature range | -40÷+85°C |
| CPU Name | NXP i.MX6ULL |
| CPU Type | x1 Core ARM Cortex A-7 |
| RAM Capacity | up to 1GB |
| Flash Memory | up to 32GB |
| Ethernet | 2x 10/100 Mbit/s |
| USB | 2x USB 2.0 |
| Form Factor | SODIM200 |
