StarCB-STM32H757-STD
Carrier Board for StarSOM-STM32H757 Module family
- Carrier Board (Base Board) compatible with the StarCB-STM32H757 family of modules
- Ready-to-use development systems for building applications based on the StarCB-STM32H757 modules
- Well-suited for applications in industrial automation
- Communication interfaces (USB 2.0 host and OTG, 10/100 Mb/s Ethernet)
- 24 bit audio codec with headphones output
- JTAG connector
- ST-Link on-board debug interface
- Ideal for industrial IoT and embedded applications

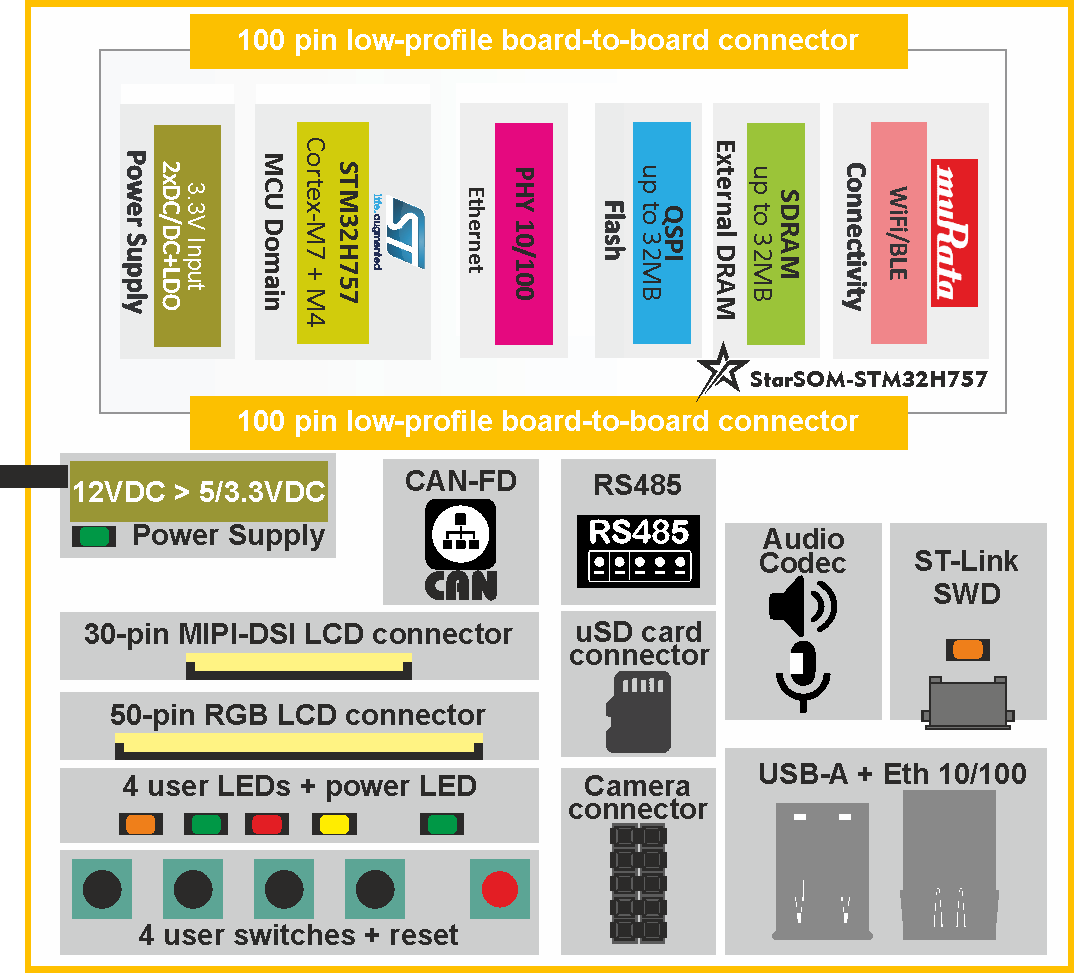

StarCB-STM32H757-STD – carrier board for the dual-core StarSOM-STM32H757 family of computer-on-modules which are powered by dual-core microcontroller (ARM Cortex-M7 + Cortex-M4). A carrier board, together with a System on Module (SoM), makes a complete development platform similar to SBC. The carrier board houses the most common interfaces such as USB, Ethernet, etc. A large variety of interfaces allows to use it as both a complete development platform or as a stand-alone end-product.
The carrier board connects with the SoM via a board-to-board, low profile connectors.
| Features | StarCB-STM32H757-STD |
|---|---|
| SoM Interface | |
| SoM Interface | 2 x 100 pin, low profile board-to-board connectors |
| SoM Type | StarSOM-STM32H757 bazsed od STM32H757XI MCU family |
| Programming/Debug Connectors | |
| JTAG | 10 pin connector 0.05" (we suggest to use Segger J-Link) |
| ST-Link | Built-in ST-Link debug probe |
| Expansion Connectors | |
| MicroSD | MicroSD card connector |
| Communication Connectors | |
| Ethernet | 1x 10/100 Mbit/s, RJ45 |
| USB Host | 1x Type A connector |
| USB OTG | MicroUSB connector |
| CAN | single channel |
| RS485 | half-duplex |
| Console | 1x MicroUSB B connector (vCOM implemented in ST-Lin interface) |
| Display | |
| MIPI-DSI | 30-pin FFC/FPC |
| Parallel 24b | 50-pin FFC/FPC Parallel RGB – 24-bit |
| Camera | |
| Interface | 2x9 pin male header (10 bit DCAM parallel interface) |
| Audio | |
| Codec | 24-bit audio codec NAU88C22YG |
| User Interface | |
| Switches | 5 Pushbuttons |
| LED | 5 |
| Power Supply | |
| DC connector | Input Voltage 9-12V DC |
| Temperature Range | |
| Consumer | 0 to +70°C |
| Mechanical Dimension | |
| Board Size | 160mm x 100mm x 21mm |
StarCB-STM32H757-STD
Carrier Board for StarSOM-STM32H757 Module family
| CPU Name | STM32H757 |
| CPU Type | dual core: ARM Cortex-M7 + Cortex-M4 |
| External SDRAM | 32MB |
| Internal RAM | 1MB |
| External Flash Memory | 32MB QSPI |
| Internal Flash Memory | 2MB |
| Ethernet | 10/100 Mbit/s (PHY on-board) |
| WiFi/BLE | optional 2,4GHz integrated module (Murata 1DX) |
| USB | 2x USB 2.0 OTG |
| Form Factor | square shaped |
7 inch LCD-TFT module (Riverdi RVT70HSMNWC00) with MIPI-DSI interface, integrated LED backlight and capacitive touch panel. Module is equipped with DC/DC converters that allows to work with typical power rails: +3.3V and +5V.
7 inch LCD-TFT module (Riverdi RVT70HSTNWC00 or RVT70HSTFWCA0) with parallel RGB interface, integrated LED backlight and capacitive touch panel. Module is equipped with DC/DC converters that allows to work with +5V power rail.
