VisionCB-6ULL-IND
Carrier Board for VisionSOM-6ULL Module family
- Carrier Board (Base Board) compatible with the VisionSOM family of modules
- Ready-to-use development systems for building applications based on the VisionSOM modules
- Well-suited for applications in industrial automation
- Communication interfaces (USB 2.0 host, 100 Mbit Fast Ethernet)
- Ideal for industrial IoT and embedded applications
- Built-in RTC with battery backup

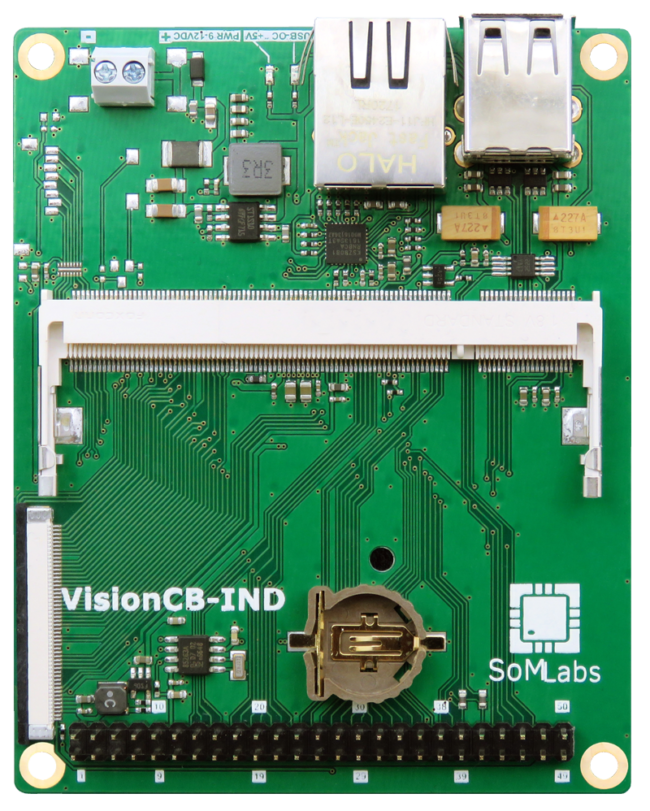

VisionCB-6ULL-IND industrial carrier board for the VisionSOM-6ULL family of computer-on-modules which are powered by NXP i.MX 6UL or i.MX 6ULL application processors (ARM Cortex-A7). A carrier board, together with a System on Module (SoM), makes a complete development platform similar to SBC. The carrier board houses the most common interfaces such as USB, Ethernet, etc. A large variety of interfaces allows to use it as both a complete development platform or as a stand-alone end-product.
The carrier board connects with the SoM via a standard SODIMM connector.
| Features | VisionCB-6ULL-IND |
|---|---|
| SoM Interface | |
| SoM Interface | SODIMM200 |
| SoM Type | VisionSOM family of modules based on NXP i.MX6UL or NXP i.MX6ULL processor (ARM Cortex-A7 single core) |
| Expansion Connectors | |
| Pin Header Connector | 2x25 Pin Header (Male) |
| Communication Connectors | |
| Ethernet | 1x 10/100Mbit/s, RJ45 |
| USB Host | 2x Type A connectors |
| Display | |
| Interface | 50-pin FFC/FPC Parallel RGB – 24-bit, (1366 x 768 Max. Resolution) |
| Embedded Real-Time Clock (RTC) | |
| RTC Type | PCF85263AT |
| Power back-up | battery CR1220 (option) |
| Power Supply | |
| Terminal block connector | Input Voltage 9-12V DC |
| Temperature Range | |
| Industrial | -40 to +85°C |
| Mechanical Dimension | |
| Board Size | 98mm x 79mm x 22mm |
VisionCB-6ULL-IND
Carrier Board for VisionSOM-6ULL Module family
| CPU Name | NXP i.MX6ULL |
| CPU Type | x1 Core ARM Cortex A-7 |
| RAM Capacity | up to 1GB |
| Flash Memory | up to 32GB |
| Ethernet | 2x 10/100 Mbit/s |
| USB | 2x USB 2.0 |
| Form Factor | SODIM200 |
