VisionCB-STD
Carrier Board for VisionSOM System-on-Module family

  • Carrier Board (Base Board) compatible with the VisionSOM family of modules
  • Ready-to-use development systems for building applications based on the VisionSOM modules
  • Well-suited for applications in industrial automation
  • Communication interfaces (USB 2.0 host and client, 100 Mbit Fast Ethernet)
  • Arduino Uno Rev. 3 (3.3V and 5V) and Raspberry Pi compatible connectors
  • Ideal for industrial IoT and embedded applications
Buy online

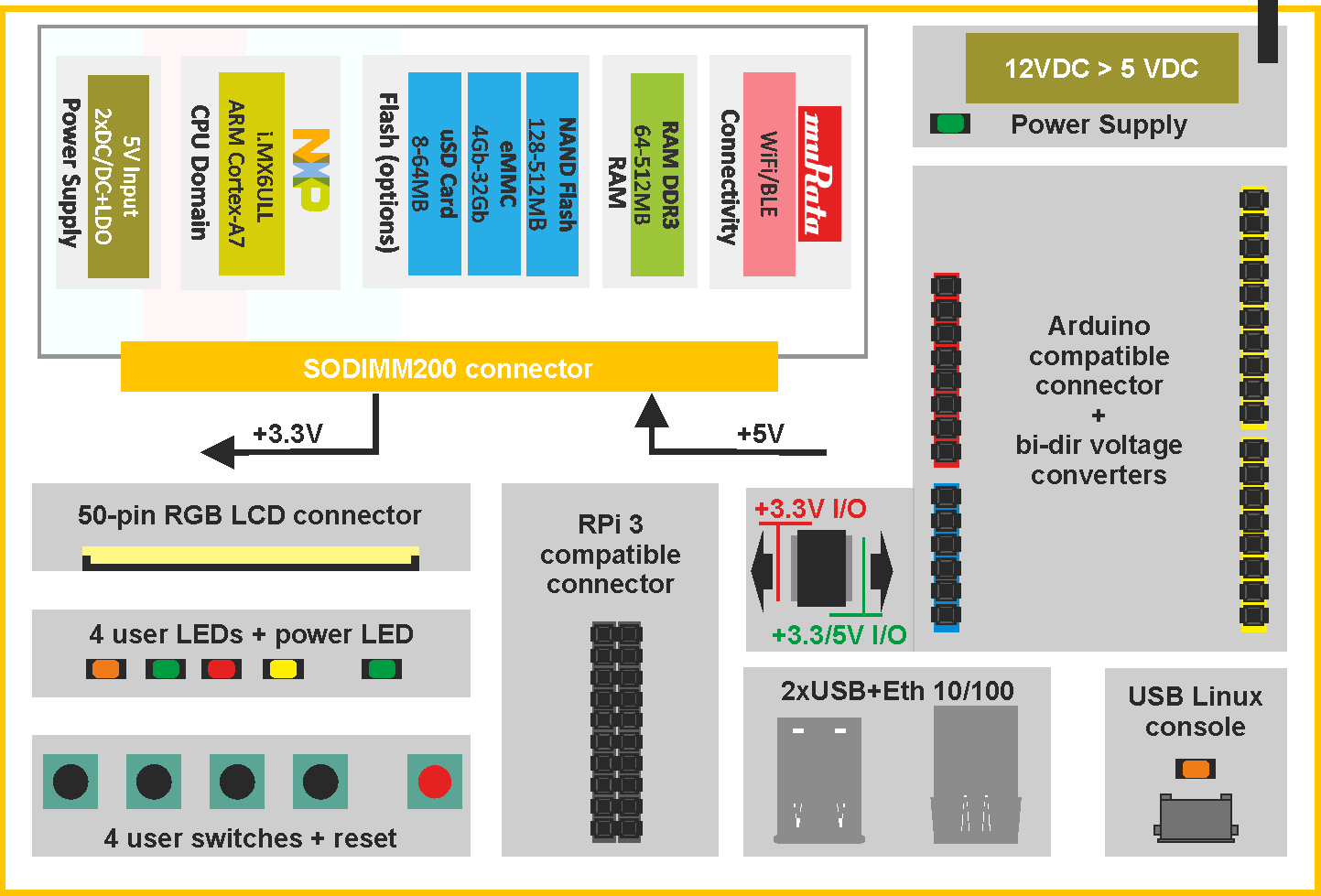

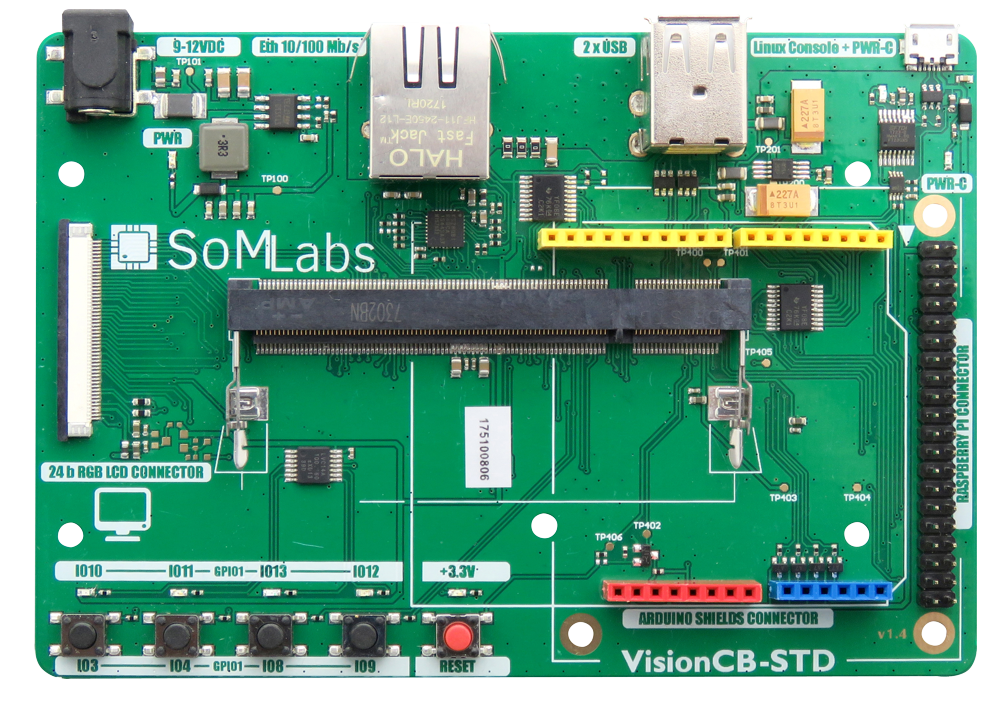

VisionCB is a carrier board for the VisionSOM family of computer-on-modules which are powered by NXP i.MX 6UL or i.MX 6ULL application processors (ARM Cortex-A7). A carrier board, together with a System on Module (SoM), makes a complete development platform similar to SBC. The carrier board houses the most common interfaces such as USB, Ethernet, etc. A large variety of interfaces allows to use it as both a complete development platform or as a stand-alone end-product.

The carrier board connects with the SoM via a standard SODIMM connector.

Features VisionCB-STD
SoM Interface
SoM Interface SODIMM200
SoM Type VisionSOM family of modules based on NXP i.MX6UL or NXP i.MX6ULL processor (ARM Cortex-A7 single core)
Expansion Connectors
Arduino Uno Rev. 3 1x8, 1x6, 1x8, 1x10 Pin Headers (Female)
Raspberry Pi compatible connectors 2x20 Pin Header (Male)
Communication Connectors
Ethernet 1x 10/100Mbit/s, RJ45
USB Host 2x Type A connectors
Console 1x MicroUSB B connector (via FTDI FT230 UART to USB converter)
Display
Interface 50-pin FFC/FPC Parallel RGB – 24-bit, (1366 x 768 Max. Resolution)
User Interface
5 Pushbuttons
5 LEDs
Power Supply
DC connector Input Voltage 9-12V DC
MicroUSB connector Input Voltage 5V DC
Temperature Range
Consumer 0 to +70°C
Mechanical Dimension
Board Size 130mm x 90mm x 17mm

Compact Switching DC Power Supply 12V/2A with DC 5.5×2.1 connector and EU/UK/USA/AUSTRALIA adapters

The VisionSOM-6ULL family is a SODIMM-sized SoM based on the NXP i.MX6 ULL application processor which features an advanced implementation of a single ARM Cortex-A7 core (at speed up to 900MHz)

The VisionSOM-6UL family is a SODIMM-sized SoM based on the NXP i.MX6 UL application processor which features an advanced implementation of a single ARM Cortex-A7 core (at speed up to 696MHz)
